Chiller condensers & evaporators冷水机组冷凝器与蒸发器
Single-system evaporator, HY-CS-A单系统蒸发器 HY-CS-A
Single-circuit evaporator from 5 HP to 120 HP, heat transfer area 15 – 375 kW. Refrigerant-side connections b and d are listed alongside the water-side a1/a2 and the vent c/e.单回路蒸发器，适配 5 HP 至 120 HP，换热面积对应 15 – 375 kW。除水管 a1/a2 与排气 c/e 外，另标注制冷剂侧接口 b 与 d。
One shell, one duty, built to the compressor it serves一种筒体，一种工况，按所配压缩机定制
Single-circuit evaporator from 5 HP to 120 HP, heat transfer area 15 – 375 kW. Refrigerant-side connections b and d are listed alongside the water-side a1/a2 and the vent c/e.单回路蒸发器，适配 5 HP 至 120 HP，换热面积对应 15 – 375 kW。除水管 a1/a2 与排气 c/e 外，另标注制冷剂侧接口 b 与 d。
Every figure on this page is transcribed from the manufacturer's catalogue. Where a value was not published, it is marked as to be confirmed rather than estimated.本页所有数据均取自厂家画册。画册未公布的项目一律标注为待确认，不作估算。
How it is put together, and what plugs in where如何构成，以及各接口的位置
Single-circuit evaporator with the refrigerant-side connections (b, d) listed alongside the water-side pair, so both sides can be piped from one schedule.单回路蒸发器，制冷剂侧接口（b、d）与水管接口一并列出，两侧管路可依据同一张接口表施工。
Vent and drain connections let the water side be emptied and purged in place, so the unit does not have to be lifted out for routine cleaning.排气与排污接口使水路可现场排空与冲洗，日常清洗无需吊装机组。
Every published model, 18 in this series本系列共公布 18 个型号
Capacity, dimensions, nozzle sizes and weight — the complete table as published. Scroll it sideways on a narrow screen; the header stays in place.制冷量、外形尺寸、管口尺寸与重量 —— 画册公布的完整参数表。窄屏下可横向滚动，表头固定。
| Model型号 | Heat transfer area换热面积 | AA | BB | CC | DD | EE | FF | GG | a1/a2a1/a2 | c/ec/e | bb | dd | Weight重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY-CS5A | 15 | 650 | 200 | 305 | 600 | 140 | 90 | 90 | 1" | 3/4" | 16 | 22 | 23 |
| HY-CS6A | 18 | 750 | 220 | 330 | 700 | 165 | 100 | 100 | 1-1/2" | 3/4" | 16 | 22 | 27 |
| HY-CS7.5A | 22.5 | 750 | 220 | 330 | 700 | 165 | 100 | 100 | 1-1/2" | 3/4" | 16 | 22 | 34 |
| HY-CS10A | 30 | 850 | 220 | 330 | 800 | 165 | 100 | 100 | 1-1/2" | 3/4" | 22 | 28 | 45 |
| HY-CS12.5A | 36 | 1050 | 220 | 330 | 1000 | 165 | 100 | 100 | 2" | 3/4" | 22 | 28 | 57 |
| HY-CS15A | 45 | 1250 | 220 | 330 | 1200 | 165 | 100 | 100 | 2" | 3/4" | 22 | 35 | 68 |
| HY-CS20A | 60 | 1250 | 275 | 385 | 1200 | 219 | 100 | 100 | 2" | 3/4" | 22 | 35 | 90 |
| HY-CS25A | 75 | 1250 | 275 | 385 | 1200 | 219 | 130 | 130 | 2-1/2" | 3/4" | 22 | 35 | 113 |
| HY-CS30A | 90 | 1550 | 275 | 385 | 1500 | 219 | 130 | 130 | 2-1/2" | 3/4" | 28 | DN50 | 135 |
| HY-CS40A | 120 | 1560 | 330 | 438 | 1500 | 273 | 130 | 130 | 3" | 3/4" | 28 | DN50 | 180 |
| HY-CS50A | 150 | 1560 | 330 | 438 | 1500 | 273 | 130 | 130 | 3" | 3/4" | 35 | DN65 | 225 |
| HY-CS60A | 180 | 2060 | 330 | 438 | 2000 | 273 | 130 | 130 | 3" | 3/4" | 35 | DN65 | 270 |
| HY-CS70A | 210 | 2560 | 330 | 438 | 2500 | 273 | 130 | 130 | DN80 | 3/4" | 35 | DN80 | 315 |
| HY-CS80A | 240 | 2560 | 330 | 438 | 2500 | 273 | 130 | 130 | DN80 | 3/4" | 35 | DN80 | 360 |
| HY-CS90A | 270 | 2560 | 395 | 505 | 2500 | 325 | 150 | 150 | DN100 | 3/4" | 35 | DN80 | 405 |
| HY-CS100A | 300 | 2600 | 395 | 505 | 2500 | 325 | 150 | 150 | DN100 | 3/4" | 35 | DN80 | 450 |
| HY-CS110A | 340 | 2600 | 395 | 505 | 2500 | 325 | 150 | 150 | DN100 | 3/4" | 2-φ35 | DN100 | 500 |
| HY-CS120A | 375 | 2600 | 460 | 535 | 2500 | 355 | 150 | 150 | DN125 | 3/4" | 2-φ35 | DN100 | 540 |
Where the series steps up量程如何递进
HY-CS5A
HY-CS10A
HY-CS20A
HY-CS40A
HY-CS70A
HY-CS100A

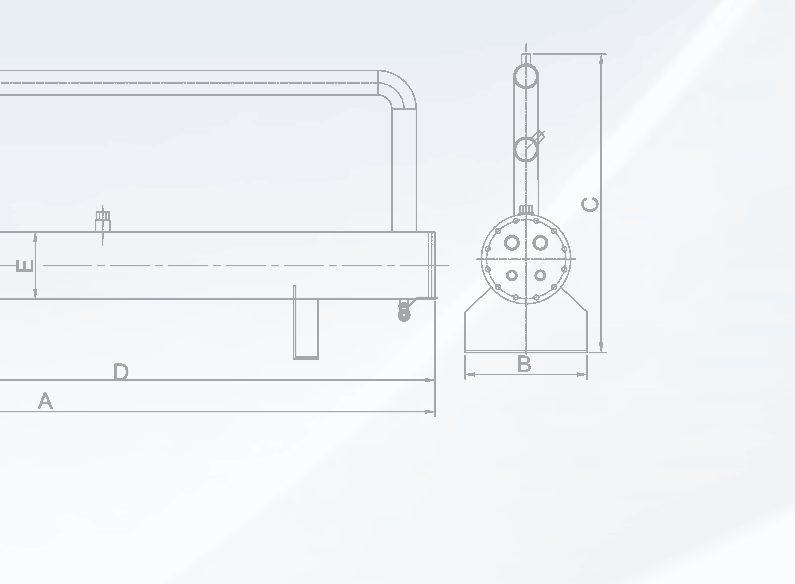

Interfaces, drawn and tabulated接口：图示与表格
Each connection carries the same code on the drawing, in the table above and in the dimension schedule below, so a contractor can read one against the other.每个接口在示意图、上方参数表与下方接口表中使用同一代号，便于施工方互相对照。
Sizes are given exactly as printed: DN, inch or φ. Where the catalogue left a value blank, the field stays blank here.尺寸严格按画册原文标注：DN、英寸或 φ。画册未填的项，此处同样留空。
How to read these numbers如何理解这些数字
- Heat exchange at condensing temperature 40 °C and outlet water temperature 35 °C.冷凝温度 40 ℃、出水温度 35 ℃ 时的换热量。
Send us the duty, we will send back a model把工况发给我们，我们回你一个型号
Give the cooling capacity, the working temperatures and the refrigerant, and the selection comes back with a nozzle arrangement and a price.提供制冷量、工况温度与制冷剂，我们会连同管口布置与报价一并回复。
